Precor

Precor UBK 685 Upright Bike

Description

SPECIFICATIONS

Warranty

Reviews

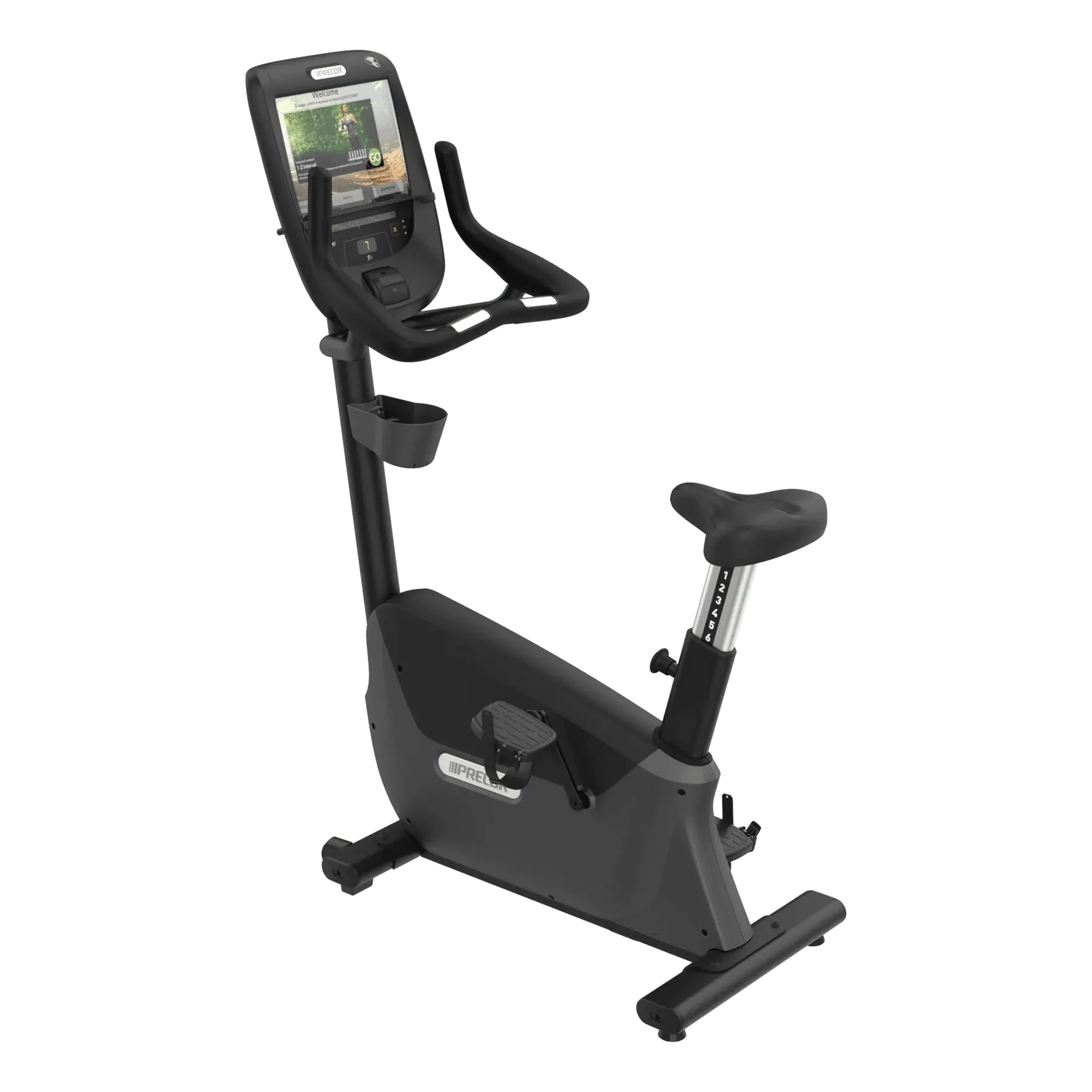

Enjoy the durability, performance, and comfort of working out on a professional-grade stationary bike. The Precor UBK 600 Line upright bike is equipped with a 500-watt single-stage drive system and a geometrically balanced seating system to ensure challenging but comfortable rides for years to come.

Commercial-Proven Design

The easy to remove shroud ensures easy access to the belt-drive system for maintenance and servicing without removing the
pedals or crank.

Innovation for Superior Riding Comfort

Over-molded handle bars add comfort and durability while offering heart rate contacts and three ergonomic riding positions: upright, cruising and road.  The familiar pop-pin seat adjustment similar to other commercial bikes allows the user to easily change the seat to their desired height.

P82 Touchscreen Console Connects With Apple Watch®

The P82 console offers a brilliant 15" screen that's ergonomically positioned to deliver crystal clear entertainment viewing. When networked, it is also a direct-to-exerciser communication portal allowing you an opportunity to build your brand, share information about activities and services, and strengthen the sense of community within your facility. Available with the optional Precor Smart Watch Connector for Apple Watch - factory-installed or as a field-installed retrofit kit.

Equipment Features

Cable Management Optional
Covers Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks.
Accessories Holder(s) Yes
Transport Wheels Integrated
Universal Seat Mount No
Frame Two-step powder-coating process on steel frame.
Bearings Pedal axles and bearings are designed for smooth operation and exceptional service life.
Seat Improved, ergonomic saddle design with comfort groove is injection-molded polyurethane with custom density for optimum riding comfort. 10.5 inches (27 cm) width quickly tapers to a narrow nose for improved riding comfort.

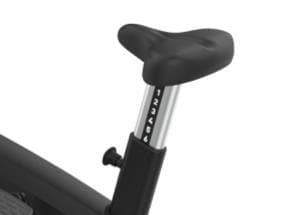

Seat Adjustment Familiar pop-pin seat adjustment allows the exerciser to easily change the seat to their desired height.
Handlebars Over-molded handlebar design offers the exerciser three comfortable riding positions: upright, cruising, and road. In the road position, the ergonomic-shaped handlebars position the wrists in a natural, neutral position. The optimum width of the handlebars provides stability and comfort along the entire forearm. The overall width of the handlebars is similar to indoor cycling bikes, which is narrower than most stationary bikes. This places the exerciser in better ergonomic position, with the forearms more directly under the shoulders. In the cruising position, the handlebar is more comfortable on the exerciser's hands. Touch heart rate is integrated in the upright position.
Pedals Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal.
Biomechanics To achieve proper pedaling biomechanics, the seat post angle and seat post offset from the crank are key to efficient pedaling and reduced shear force on the knee. The seat post angle is 74 degrees with a 5-inch (13 cm) offset from the crank axle. This places the forward knee directly over the ball of the foot (or pedal spindle) when the pedals are in a horizontal position.

Resistance System

Minimum Watts 22 (level 1 at 20 RPM)
Maximum Watts 500 (level 25 at 150 RPM)
Single-Stage Drive System The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression.
Resistance Levels 25
3-Piece Crank 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal.
3-Phase Generator 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike.
Belt Drive Belt drive for smoother, quieter operation and reduced maintenance.

Console Features

Display Type 15 in / 38.1 cm LCD Capacitive Touchscreen
Numeric Keypad Yes
Motion Controls Yes
QuickStart™ Yes
Tactile Dome Keys Yes
Console Language(s) English, Chinese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish
Units Selection Metric and U.S. Standard
Maximum Pause Time (Pause) 300 seconds (adjustable)
Maximum Workout Time 120 minutes (adjustable)
Electronic Readouts Resistance Level

Total Distance, Distance Remaining
Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts
Time Elapsed, Time Remaining, Time in Zone, Segment Time
RPM, Speed, Average Speed
Heart Rate, Average Heart Rate, Max Heart Rate
Preset Programs Lose Weight
4-3 Interval
Aerobic
Fat Burner
Heart Rate Zone
Be Fit
Manual
1-1 Interval
2-1 Interval
4-1 Interval
Rolling Hills
Mountain Peaks
Hill Climb
Heart Rate Zone
Push Performance
1-4 Interval
1-2 Interval
5 K
Heart Rate Zone
Watts Target

Heart Rate Monitoring

Touch Touch heart rate sensors located conveniently on handlebars next to seat.
Telemetry The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and ourFreqently Asked Questions.
Heart Rate Sensor Advisory

The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and ourFreqently Asked Questions.

Integrated Entertainment Options

Closed Captioning Yes, CC1-4, Text 1-4 (North America only)
Video decoding MPEG-2, MPEG-4, H.264
Global TV Support Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C
Mobile Device Charger Yes
Reading Rack Integrated
Personal Viewing System (PVS) Integrated
Video inputs RF, HDMI (media adapter option)
Entertainment Cap / Wireless Receiver N/A

Network Capabilities

RFID / NFC ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future)
Ethernet 10/100/1000 Base-T
Diagnostics Ability to set club parameters, e.g. to limit exercise time and pause time.
CSAFE Enabled N/A
Wifi 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation
Bluetooth Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future)

Equipment Specifications

Maximum User Weight 350 lb / 159 kg
User Height Range 58 to 78 inches / 147 to 198 cm
Standard Frame Colors Gloss Metallic Silver
Black Pearl

Equipment Dimensions and Weight

Length 43 in / 109 cm
Width 21 in / 53 cm
Equipment Weight 144 lb / 65 kg
Height 59 in / 150 cm

Shipping Dimensions and Weight

Length 47 in / 119 cm
Width 22 in / 56 cm
Height 32 in / 81 cm
Shipping Weight 166 lb / 75 kg

Power Requirements

Equipment ~100-240V 50/60Hz 1.6 Amps
Personal Viewing Screen (PVS) N/A
Optional Power Supply N/A

Commercial Warranty:

  • Frame and welds: 7 Years
  • Parts: 3 Years
  • Labor: 1 Year

Residential Warranty:

  • Frame and welds: Lifetime
  • Parts: 10 Years
  • Console: 3 Years
  • Labor: 1 Year

COMFORTABLE RIDES

A heavily padded seat with the grooves and curves in all the right places and a solid one-piece handlebar that allows you to easily adjust your riding position ensures your stationary bike is not masquerading as a torture device.

BIOMETRIC PERFECTION

As you already know, the key to a good bike ride is good biomechanics. We set the angle of the seat rail and offset the crank axle to create efficient pedaling that keeps your knee over the pedal spindle and reduces shear force.

AWESOME ENGINEERING

When you slip into the seat of a Precor upright bike and start pedaling, you can immediately feel the difference of using a professional-grade machine. We put all our design expertise into ensuring a quiet, challenging, comfortable ride on a solid piece of equipment.
